Autodesk Robot Structural Analysis

[#1]

i changed my hollow slab to a bigger one, but when i did, the ratio for the beams got smaller. shouldent it be lagrer?

[#2]

It depends on stiffeness of whole this system. Play with different slab thicknesses \ beam sizes and look at results.

[#3]

i have to have a certian tickness of the slab, but i dont understand why the ratio of the beams got lower when then slab got bigger.

[#4]

[#5]

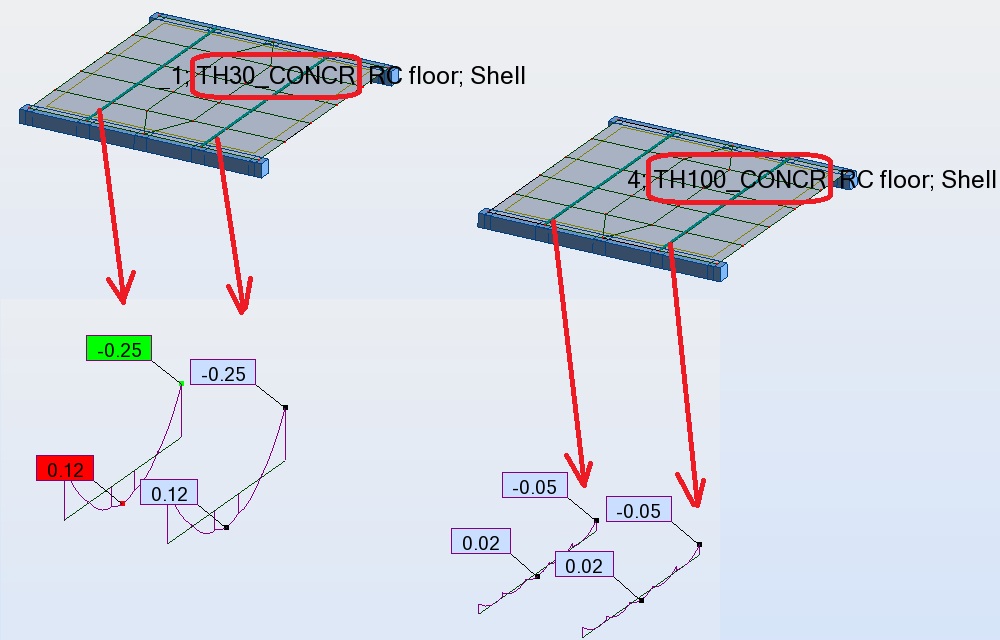

When the slab have a biger height, the rigidity of the slab is biger and the beams can't deform.

My advise is to create a thin slab (like 7 or 8 cm ) and the diference of weight (til 30 cm) you give as a surface load on slab. I use this metod when I want to increase the ratio for beams.

[#6]

Hilda,

Please check also:

http://forums.autodesk.com/t5/Autodesk-Robot-Structural/unrealistic-beams/m-p/3390693/

http://forums.autodesk.com/t5/Autodesk-Robot-Structural/Beam-offsets/m-p/3332921/

Hope this help you understand this situation even better.
